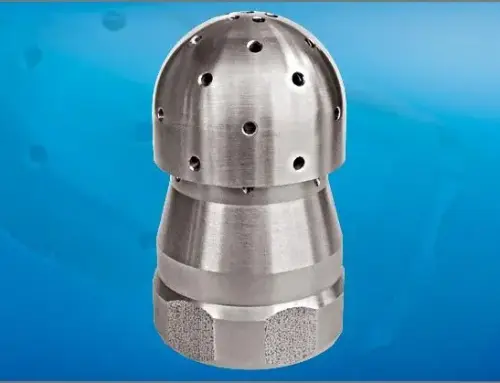

Spray balls – special materials

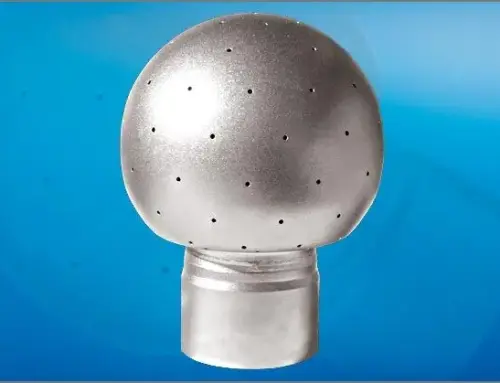

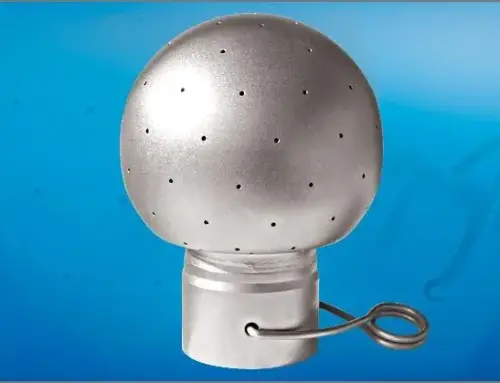

Sprayballs made of Stainless Steel
Extensive range with high quality workmanship
- 0.8 to 3.0 meter cleaning diameter
- 360° spray pattern type available
- suitable for use in FDA & EX environment
- acid, alkali & temperature resistant
- 2 different ball sizes available
- inexpensive to purchase, reliable operation
- reasonable selection of high quality materials
| Technical Data | Value |
|---|---|
| Max. Cleaning Diameter: | 3 meters |
| Spraypattern: | 360° |
| Pressure-range: | 1,0 – 2,5 bar |
| Flowrate: | 40 – 290 LPM (2,4 – 17,4 m³/h) |
| Insertion Opening: | 30 mm up to 60mm |
| Mounting position: | arbitrary |
| Materials: | Stainless Steel 316L (1.4435), Alloy 59 (2.4605), Hastelloy C22 (2.4602), (1.4539) |
| Standard connection: | see table |
| Surface: | E-polished, outside Ra<=0.5 μm, matt for DIN ISO |
| Nozzle characteristic: | static ball with holes |
| max. ambient temperature: | 140°C (284°F) 30 Min. |
| Operating recommendation: | It is recommended to install a filter/strainer (500 μm) in the CIP supply line to the tank cleaner to protect it from particle clogging or damage. |
Due to high liquid volumes, fixed spray balls enable thorough cleaning even at low pressure. The cleaning effect is achieved by bombarding and rinsing the inner walls of the container. By adding suitable cleaning agents, an improvement of the cleaning effect can be achieved, thus shortening the cleaning time.
Two modes of operation are possible
– permanent flushing
– impulse-pause operation
Compared to the permanent blasting, the impulse-pause operation causes a reduction of the cleaning liquid quantity with the same cleaning time. This allows the cleaning medium used to develop its effect.
Pipe-types
| (DIN 11866 A-Series for Pipe outward dimensions) | DIN 11866 B-Series DIN EN ISO 1127 | DIN 11866 C-Series ASME-BPE 2005 | ||||||
|---|---|---|---|---|---|---|---|---|
| DR: Pipe outer diameter s: Spray ball Wall thickness | ||||||||
| DN | DR (mm) | s (mm) | DN/OD | DR (mm) | s (mm) | DN | DR | s (mm) |
| 10 | 13 | 1,5 | 13,5 | 13,5 | 1,6 | 1/2″ | 12,7 | 1,65 |
| 15 | 19 | 1,5 | 17,2 | 17,2 | 1,6 | 3/4″ | 19,05 | 1,65 |
| 20 | 23 | 1,5 | 21,3 | 21,3 | 1,6 | |||
| 26,9 | 26,9 | 1,6 | ||||||
| 25 | 29 | 1,5 | 33,7 | 33,7 | 2,0 | 1″ | 25,4 | 1,65 |
| 40 | 41 | 1,5 | 42,4 | 42,4 | 2,0 | 1 1/2″ | 38,1 | 1,65 |
| 50 | 53 | 1,5 | 48,3 | 48,3 | 2,0 | 2″ | 50,8 | 1,65 |

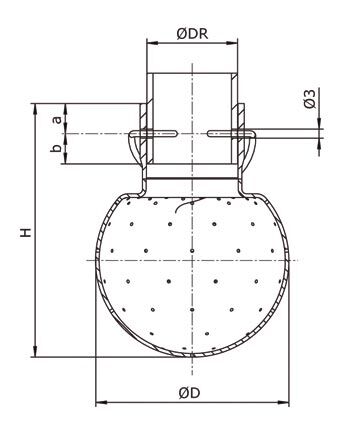

Bore size
| Type 05 | Type 1 | Type 2 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 316L (1.4404) | 316L (1.4435) | Alloy 59 (2.4605) | 316L (1.4404) | 316L (1.4435) | Alloy 59 (2.4605) | 316L (1.4404) | ||||||
| Ø DR | 12 mm | 13 mm | 1/2″ OD mm | 13,5 mm | 1/2″ OD mm | 29 mm | 1″ OD mm | 29 mm | 33,7 mm | 33,7 mm | 53 mm | 2″ OD mm |
| Ø D | 28 | 28 | 28 | 28 | 28 | 64 | 64 | 64 | 64 | 64 | 93 | 93 |
| H | 46,6 | 46,6 | 46,6 | 46,6 | 46,6 | 84 | 84 | 84 | 84 | 84 | 113,5 | 113,5 |
| b+a | 18 | 18 | 16 | 18 | 18 | 20 | 20 | 20 | 16,5 | 16,5 | 30 | 30 |
| a | 10 | 10 | 8 | 10 | 10 | 10 | 10 | 10 | 6 | 6 | 10 | 10 |
| b | 8 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10,5 | 10,5 | 20 | 20 |
| Drilling from bottom edge pipe | ||||||||||||
| b-0,2 | 7,8 | 7,8 | 7,8 | 7,8 | 7,8 | 9,8 | 9,8 | 9,8 | 10,3 | 10,3 | 19,8 | 19,8 |
DIN 11850 Clamp connection
Material: 316L (1.4435), Fe<=1%
Surface: e-polished, outside: Ra<=0,5 μm
| Type | Spray angle | Range Ø m | 1,0 bar m³/h | 1,5 bar m³/h | 1,8 bar m³/h | 2,0 bar m³/h | 2,2 bar m³/h | 2,5 bar m³/h | D mm | H mm | Pipe DIN 11850 | Order code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow rate with electropolished spray balls approx. 15 – 20% higher than indicated in the table. Recommended operating pressure 1.0 to 2.5 bar at the inlet of the spray ball. The recommended value of cleaning liquid per meter of tank circumference is 30 to 50 l/min. | ||||||||||||
| A1-1,0 | 360° | 1,5-2,5 | 3,0 | 3,7 | 4,0 | 4,2 | 4,4 | 4,7 | 64 | 84 | 29 | 11850P-253-111.83 |
| A1-1,5 | 360° | 1,8-3,0 | 7,0 | 8,6 | 9,4 | 9,9 | 10,4 | 11,1 | 64 | 84 | 29 | 11850P-253-111.84 |
| A1 | 360° | 2,0-3,0 | 9,8 | 12,0 | 13,1 | 13,9 | 14,5 | 15,5 | 64 | 84 | 29 | 11850P-253-111.82 |
| LA1-1,0 | 360° | 1,5-2,5 | 5,5 | 6,7 | 7,4 | 7,8 | 8,2 | 8,7 | 64 | 84 | 29 | 11850P-253-111.80 |
| LA1-1,5 | 360° | 2,5-3,0 | 11,0 | 13,5 | 14,8 | 15,6 | 16,3 | 17,4 | 64 | 84 | 29 | 11850P-253-111.81 |
ISO Clamp connection
Material: 316L (1.4435), Fe<=1%
Surface: e-polished, outside: Ra<=0,5 μm
| Type | Spray angle | Range Ø m | 1,0 bar m³/h | 1,5 bar m³/h | 1,8 bar m³/h | 2,0 bar m³/h | 2,2 bar m³/h | 2,5 bar m³/h | D mm | H mm | Pipe ISO | Order code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow rate with electropolished spray balls approx. 15 – 20% higher than indicated in the table. Recommended operating pressure 1.0 to 2.5 bar at the inlet of the spray ball. The recommended value of cleaning liquid per meter of tank circumference is 30 to 50 l/min.. | ||||||||||||
| A05 | 360° | 1,0-2,0 | 5,1 | 6,2 | 6,8 | 7,2 | 7,6 | 8,1 | 28 | 46,6 | 13,5 | ISOP-253-111.78 |
| A05-1,0 | 360° | 0,8-1,5 | 2,8 | 3,4 | 3,8 | 4,0 | 4,2 | 4,4 | 28 | 46,6 | 13,5 | ISOP-253-111.79 |
| A1-1,0 | 360° | 1,5-2,5 | 3,0 | 3,7 | 4,0 | 4,2 | 4,4 | 4,7 | 64 | 84 | 33,7 | ISOP-253-111.88 |
| A1-1,5 | 360° | 1,8-3,0 | 7,0 | 8,6 | 9,4 | 9,9 | 10,4 | 11,1 | 64 | 84 | 33,7 | ISOP-253-111.87 |
| LA1-1,0 | 360° | 1,5-2,5 | 5,5 | 6,7 | 7,4 | 7,8 | 8,2 | 8,7 | 64 | 84 | 33,7 | ISOP-253-111.85 |
| LA1-1,5 | 360° | 2,5-3,0 | 11,0 | 13,5 | 14,8 | 15,6 | 16,3 | 17,4 | 64 | 84 | 33,7 | ISOP-253-111.86 |
Inch OD and ISO clamp connection
Material: Alloy 59 (2.4605), Hastelloy C22 (2.4602)
Surface: e-polished, outside: Ra<=0.5 μm
| Type | Spray angle | Range Ø m | 1,0 bar m³/h | 1,5 bar m³/h | 1,8 bar m³/h | 2,0 bar m³/h | 2,2 bar m³/h | 2,5 bar m³/h | D mm | H mm | INCH/ ISO | Order code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow rate with electropolished spray balls approx. 15 – 20% higher than indicated in the table. Recommended operating pressure 1.0 to 2.5 bar at the inlet of the spray ball. The recommended value of cleaning liquid per meter of tank circumference is 30 to 50 l/min. | ||||||||||||
| A05 | 360° | 1,0-2,0 | 5,1 | 6,2 | 6,8 | 7,2 | 7,6 | 8,1 | 28 | 46,6 | 1/2″ (12,7) | INCHA-253-111.76 |
| A05-1,0 | 360° | 0,8-1,5 | 2,8 | 3,4 | 3,8 | 4,0 | 4,2 | 4,4 | 28 | 46,6 | 1/2″ (12,7) | INCHA-253-111.77 |
| A1-1,0 | 360° | 1,5-2,5 | 3,0 | 3,7 | 4,0 | 4,2 | 4,4 | 4,7 | 64 | 84 | 33,7 | ISOA-253-111.68 |
| A1-1,5 | 360° | 1,8-3,0 | 7,0 | 8,6 | 9,4 | 9,9 | 10,4 | 11,1 | 64 | 84 | 33,7 | ISOA-253-111.69 |

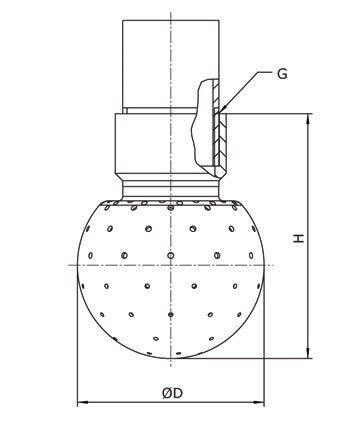

DIN ISO 228-1 Threaded connection
Material: Alloy 59 (2.4605), Hastelloy C22 (2.4602)
Surface: e-polished, outside: Ra<=0,5 μm
| Type | Spray angle | Range Ø m | 1,0 bar m³/h | 1,5 bar m³/h | 1,8 bar m³/h | 2,0 bar m³/h | 2,2 bar m³/h | 2,5 bar m³/h | D mm | H mm | Pipe DIN ISO 228-1 | Order code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow rate with electropolished spray balls approx. 15 – 20% higher than indicated in the table. Recommended operating pressure 1.0 to 2.5 bar at the inlet of the spray ball. The recommended value of cleaning liquid per meter of tank circumference is 30 to 50 l/min.. | ||||||||||||
| A05 | 360° | 1,0-2,0 | 5,1 | 6,2 | 6,8 | 7,2 | 7,6 | 8,1 | 28 | 46,6 | G 1/2″ | GA-253-106.78 |
| A05-1,0 | 360° | 0,8-1,5 | 2,8 | 3,4 | 3,8 | 4,0 | 4,2 | 4,4 | 28 | 46,6 | G 1/2″ | GA-253-106.79 |
DIN ISO Threaded connection
Material: (1.4539)
Surface: matte
| Type | Spray angle | Range Ø m | 1,0 bar m³/h | 1,5 bar m³/h | 1,8 bar m³/h | 2,0 bar m³/h | 2,2 bar m³/h | 2,5 bar m³/h | D mm | H mm | Pipe DIN ISO | Order code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow rate with electropolished spray balls approx. 15 – 20% higher than indicated in the table. Recommended operating pressure 1.0 to 2.5 bar at the inlet of the spray ball. The recommended value of cleaning liquid per meter of tank circumference is 30 to 50 l/min.. | ||||||||||||
| A05 | 360° | 1,0-2,0 | 4,7 | 5,8 | 6,3 | 6,6 | 7,0 | 7,4 | 28 | 25 | G 1/4″ | GS-253-106.68 |
Installation lance
| Materials: | Stainless Steel 1.4404 (316L), EPDM, FKM |
| Certificates: | 3.1, 2.2 |
| Device connection: | see table |
| Tank connection: | Flange as needed |
| Sensor: | without SMW 100 |
The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All data are without guarantee. (Stand: 30.10.2023-71427321893-1888948-71042)
