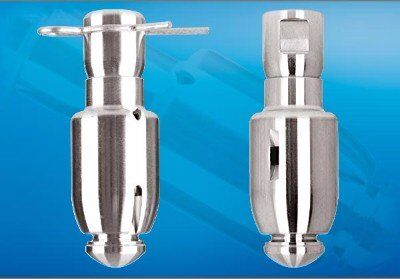

Sanitor Rotating Nozzle
Jetforming, slowly rotating and heat-resistant rotating nozzle
- liquid-powered 360° rotating nozzle
- strong radiance with low consumption values
- completely made of stainless steel, no plastics
- FDA compliant & EX certified
- acid, alkali and temperature resistant
- compact dimensions
- self-cleaning, hygienic, low-wear
| Technical Data | Value |
|---|---|
| Max. cleaning diameter: | 4,8 meters |
| Spray pattern: | 360° |
| Pressure range: | 2 – 20 bar |
| Flow rate: | 25 – 92 LPM (1,5 – 5,5 m³/h) |
| Insertion opening: | BSP/NPT min. Ø 32 mm, Splint min. Ø 60 mm |
| Mounting position: | arbitrary, preferrably vertical downwards |
| Weight: | approx. 0,17 KG |
| Materials: | Stainless Steel 316L (1.4404) |
| Pipe connection: | 3/8″ Internal Thread BSP (NPT) |
| Optional Pipe Connections: | 1/2″ Splint |
| Nozzle characteristics: | Ball with slots |
| Certificates: | 3.1, 2.2, ATEX, FDA Regulation (EC) No 1935/2004 |
| Max. operating temperature: | 95°C (203°F) |
| Max. ambient temperature: | 140°C (284°F), 30 Min. |
| Operating recommendation: | It is recommended to install a filter/strainer (500 μm) in the CIP supply line to the tank cleaner to protect it from particle clogging or damage. |

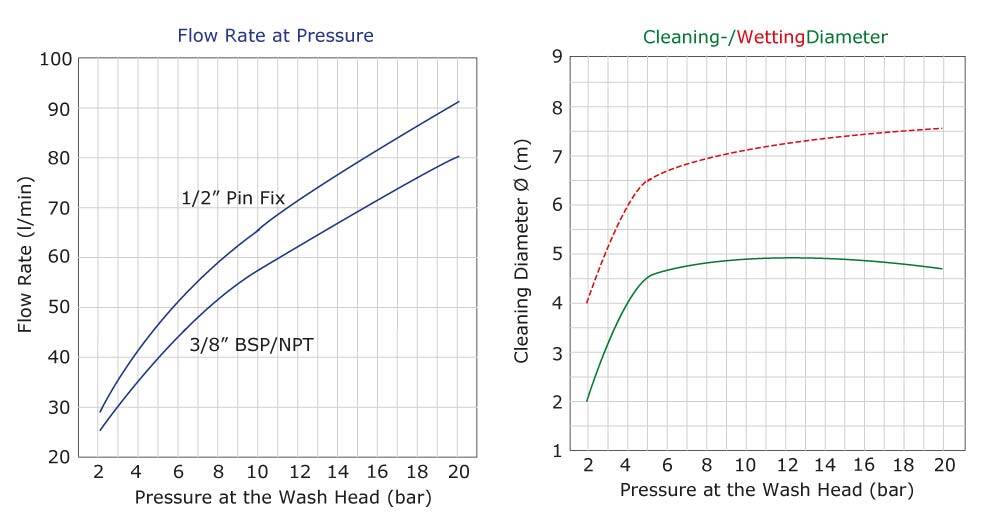

Optimal Operating
The pressure range for operating a Turbo SSB 40 is 2 – 20 bar at the cleaning nozzle.
With a flow rate of 25 – 92 liters/minute, a cleaning diameter of 2 – 4,8 meters is achieved.
The Sanitor is a compact liquid-bearing rotating nozzle consisting of only 3 stainless steel components. From a liquid pressure of at least 2 bar, the stainless steel rotor is lifted by the liquid and slowly begins to rotate. Flat, overlapping jets of liquid are generated through liquid outlet openings. The liquid jets create a strong impact effect, which is favored by the slow rotation. The pure stainless steel construction of the Sanitor makes it extremely temperature-resistant.
The Sanitor is ideally suited as a replacement for fixed spray balls. The sanitor can be driven flexibly in the range of 2 to 20 bar liquid pressure and achieves a cleaning diameter of up to 4.8 meters. Without ball bearings and without plastic components, FDA compliant and suitable for EX zones. The Sanitor is available with a 360° spray pattern and 3/8″ BSP/NPT or 1/2″ split pin mounting.

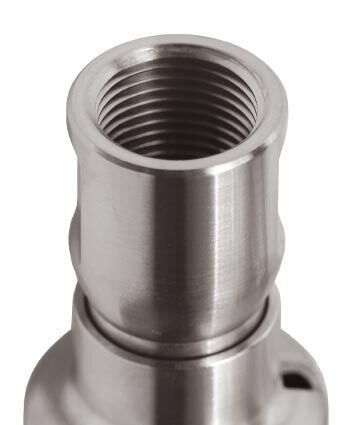

Threaded Connection
Sanitor standard devices are equipped with a 3/8″ cylindrical internal thread BSP (British Standard PIPE according to DIN ISO 228). The device is optionally available with a 3/8″ conical internal thread NPT (National Pipe Taper, American pipe thread for self-sealing connections).

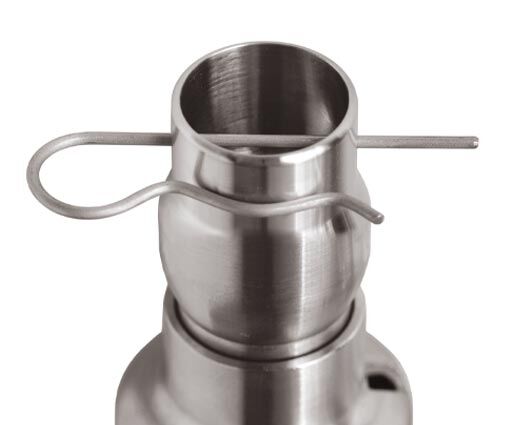

Splint Connection
Sanitor is optionally available with 1/2″ Split pin attachment. The Split pin attachment ensures that the cleaning nozzle is attached without dead space. Split pin versions have an approx. 15% higher flow rate compared to other conection types.

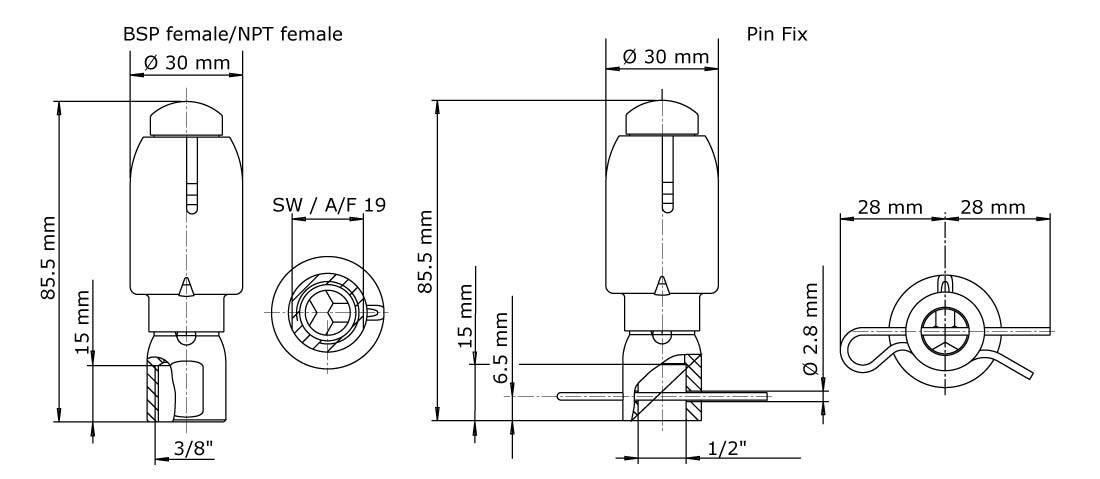

Sanitor Threaded and Splint pin connection
| Connection | Spraypattern | Pipe* | Product code | Materials | Certificates | Article number |
|---|---|---|---|---|---|---|
| *corresponds to the maximum pipe OD of the pipe on which the nozzle is to be installed (inches or mm). Split pin versions have approx. 15% higher flow-rates. Recommended standard devices with high storage probability are colored in blue. | ||||||
| 3/8″ IG-BSP | 360° | 3/8″ | SANITORAF-360-BSP | 316L | ATEX+FDA, 3.1 | 4660-3002-010 |
| 3/8″ IG-NPT | 360° | 3/8″ | SANITORAF-360-NPT | 316L | FDA, 3.1 | 4660-3003-010 |
| 1/2″ Split pin | 360° | 12,70 | SANITORAF-360-PF | 316L | ATEX+FDA, 3.1 | 4660-3001-010 |
| 3/8″ IG-BSP | 360° | 3/8″ | SANITORHC22-360-BSP | Hastelloy C22/2.4602 | ATEX+FDA, 3.1 | 4660-3002-020 |
| 3/8″ IG-BSP | 360° | 3/8″ | SANITORHC22-360-NPT | Hastelloy C22/2.4602 | ATEX+FDA, 3.1 | – |
| 1/2″ Split pin | 360° | 12,70 | SANITORHC22-360-PF | Hastelloy C22/2.4602 | ATEX+FDA, 3.1 | – |
Installation Lance
| Materials: | Stainless Steel 1.4404 (316L), EPDM, FKM |
| Certificates: | 3.1, 2.2 |
| Device Connection: | 3/8″ AG-BSP (1/2″ Splint) |
| Tank Connection: | Flange as needed |
| Sensor: | with/without SMW 100 |
SMW 100 Fluid Control Sensor
| Materials: | 1.4305, PEEK |
| Connection Type: | welding sleeve |
| Function: | Sensor surge is displayed every 20 seconds |
The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 28.10.2022-71427321893-1888948-71042)
