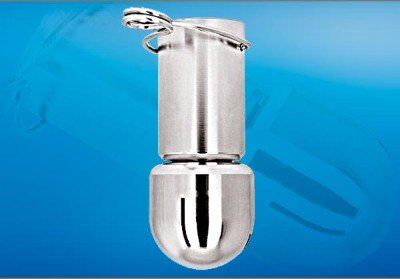

Rotiko ball bearing Nozzle
Ball bearing nozzle with fast rotation,
economic cleaning
- ball bearing
- fast rotation, effective cleaning
- FDA-conform
- high-speed, fast distribution
- e-polished Surfaces Ra ≤ 0,5 μm
- energy saving alternative for static sprayballs
- for hygiene sensible application
| Technical Data | Value |
|---|---|
| Max. cleaning diameter: | 2,4 Meter |
| Spray pattern: | 360° and 180° up-, downwards |
| Pressure range: | 1,5 – 4 bar |
| Flow rate: | 16,8 – 76,5 LPM (1,01 – 4,59 m³/h) |
| Insertion opening: | DIN min. Ø 38 mm, ASME min. Ø 50 mm, SMS min. Ø 70 mm |
| Mounting position: | vertical downwards |
| Weight: | approx. 0,15 KG |
| Materials: | Stainless Steel 316L (1.4435) Body+Ball, 316L (1.4435) Clamp, 1.4404, ball bearing (optional: 2.4610), Orifice: PTFE |
| Pipe connection: | Clamp connection DIN (23X1,5), ASME (25,4×1,65), SMS (25×1,2) |
| Nozzle characteristics: | Ball with slots |
| Certificates: | 3.1, 2.2, FDA, FDA Regulation (EC) No 1935/2004 |
| Max. operating temperature: | 65°C (149°F) |
| Max. ambient temperature: | 140°C (284°F), 30 Min. |
| Operation recommendation: | It is recommended to install a filter/screen (500 μm) in the CIP inlet line to the tank cleaner to protect it from clogging with particles or damage. |
| Flowrates at pressure (m³/h) | |||||||
|---|---|---|---|---|---|---|---|
| PTFE orifice | 1,5 bar | 2,0 bar | 2,5 bar | 3,0 bar | 3,5 bar | 4,0 bar | |
| DIN Ø 4 mm | 1,01 | 1,17 | 1,30 | 1,43 | 1,54 | 1,65 | |
| DIN Ø 6 mm | 1,74 | 2,01 | 2,25 | 2,46 | 2,66 | 2,84 | |
| DIN Ø 8 mm | 2,70 | 3,12 | 3,49 | 3,82 | 4,12 | 4,41 | |
| ASME Ø 4 mm | 1,09 | 1,26 | 1,41 | 1,54 | 1,67 | 1,78 | |
| ASME Ø 6 mm | 1,82 | 2,10 | 2,35 | 2,57 | 2,78 | 2,97 | |
| ASME Ø 8 mm | 2,82 | 3,26 | 3,64 | 3,99 | 4,31 | 4,61 | |
| SMS Ø 4 mm | 1,08 | 1,25 | 1,39 | 1,53 | 1,65 | 1,76 | |
| SMS Ø 6 mm | 1,81 | 2,09 | 2,34 | 2,56 | 2,76 | 2,96 | |
| SMS Ø 8 mm | 2,81 | 3,24 | 3,63 | 3,97 | 4,29 | 4,59 | |

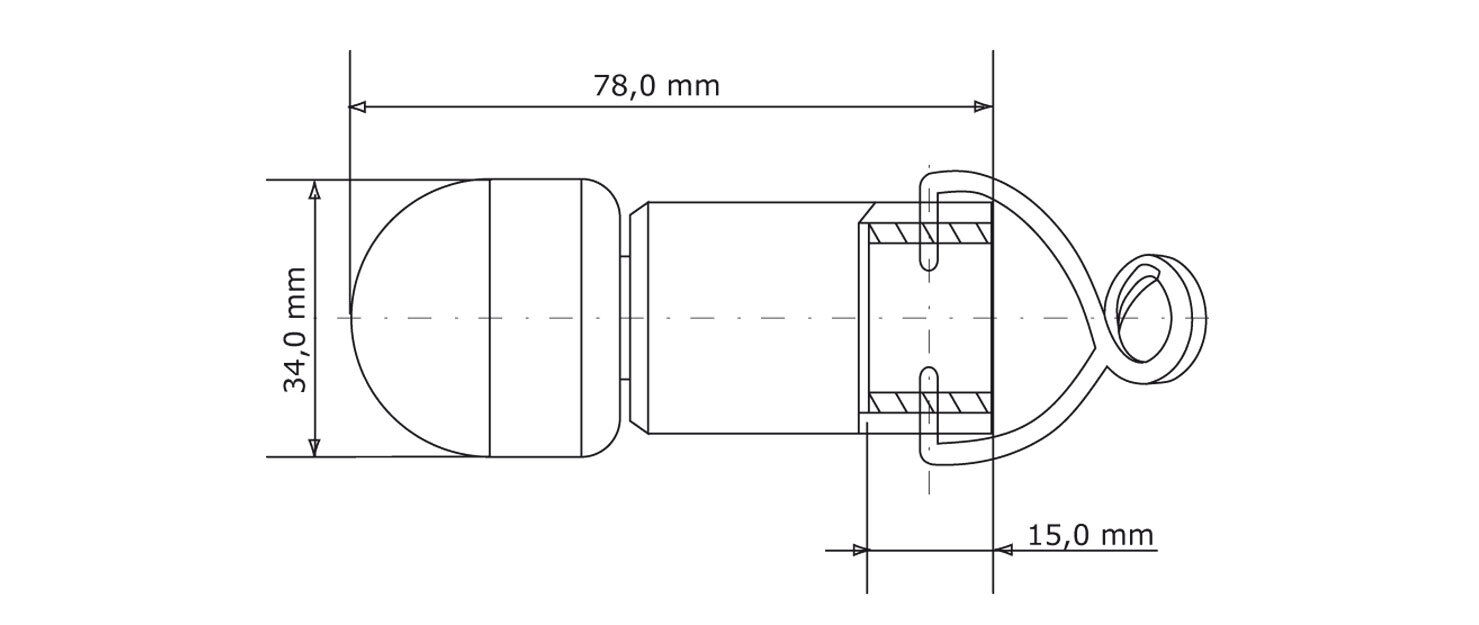

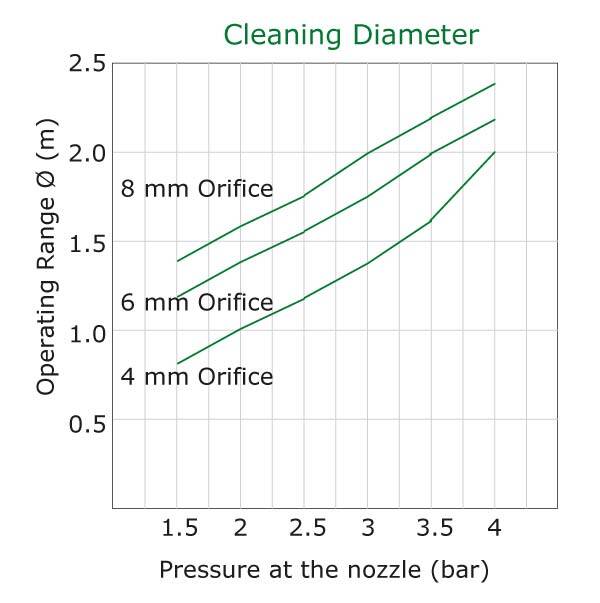

With a flowrate 1,01 – 4,59 m³/h a cleaning diameter of 0,75 – 2,4 meters is achieved.
The ROTIKO is a fast rotating spray head driven by the cleaning medium with droplet forming liquid distribution exiting through slots. With lower liquid consumption and higher spraying effectiveness, the Rotiko is an energy-saving alternative to static spray balls.
When using the new ROTIKO, the rotation of the spray head applies the cleaning liquid to the whole or only the upper area of a container.
Mode of operation: The double-bearing spray head is rotated by the flow of the cleaning agent. The tank surface is completely wetted with detergent through circumferential slots. The spray head is self-cleaning. The cleaning of the feed pipe is carried out through the slot between the connection sleeve and the pipe and a hole directed towards the connection.
The specially arranged spray slots allow for large droplet formation and an even spray pattern. Consumption of water and detergent is reduced by up to 50% compared to static spray balls.
A 6 mm PTFE orifice plate is installed in the ROTIKO ex works. Additional PTFE orifices with 4 and 8 mm bore are always supplied. This allows easy adjustment of the liquid quantities.

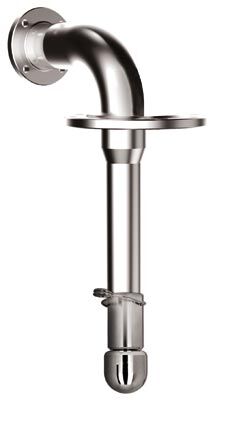

Installation Lance
| Materials: | Stainless Steel 1.4404 (316L), EPDM, FKM |
| Certificates: | 3.1, 2.2 |
| Device connection: | Clamp connection |
| Tank connection: | Flange as required |
| Sensor: | without SMW 100 |
The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 15.12.2022-71427321893-1888948-71042)
