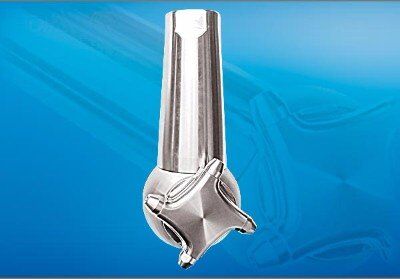

Typhoon orbital cleaner
Extremely powerful, radially and axially rotating jet cleaner with 4 nozzles
- liquid driven 360° low pressure orbital cleaner
- strong radiation with medium consumption values
- FDA compliant & EX certified
- acid, alkali and temperature resistant
- compact dimensions
- self-cleaning, hygienic, low-wear
- validatable cleaning
- function monitoring by Vericlean or SMW 100
| Technical Data | Value |
|---|---|
| Max. cleaning diameter: | 17 meters |
| Spray pattern: | 360° orbital |
| Pressure range: | 4 – 10 bar / 58-145 psi |
| Flow rate: | 48 – 175 LPM (2,9 – 10,5 m³/h) |
| Insertion opening: | min. Ø 130 mm |
| Preferred mounting position: | arbitrary, preferrably vertical |
| Weight: | approx. 2,0 KG |
| Materials: | Stainless Steel 316L 316L (1.4404), C.PTFE, PTFE, C.PEEK |
| Pipe connection: | 1″ female thread BSP (NPT) |
| Optional Pipe Connections: | 3/4″ or 1,5″ female thread BSP (NPT), 1″, 1,5″, DN40 Splint connection or 1,5″ Clamp connection |
| Nozzle characteristics: | 4 x 3,0 mm nozzles, 4 x 4,5 mm nozzles, 4 x 6,0 mm nozzles |
| Certificates: | 3.1, 2.2, ATEX, FDA Regulation (EC) No 1935/2004 |
| Max. operating temperature: | 95°C (203°F) |
| Max. ambient temperature: | 140°C (284°F), 30 Min. |
| Operating recommendation: | It is recommended to install a filter/strainer (500 μm) in the CIP supply line to the tank cleaner to protect it from particle clogging or damage. |

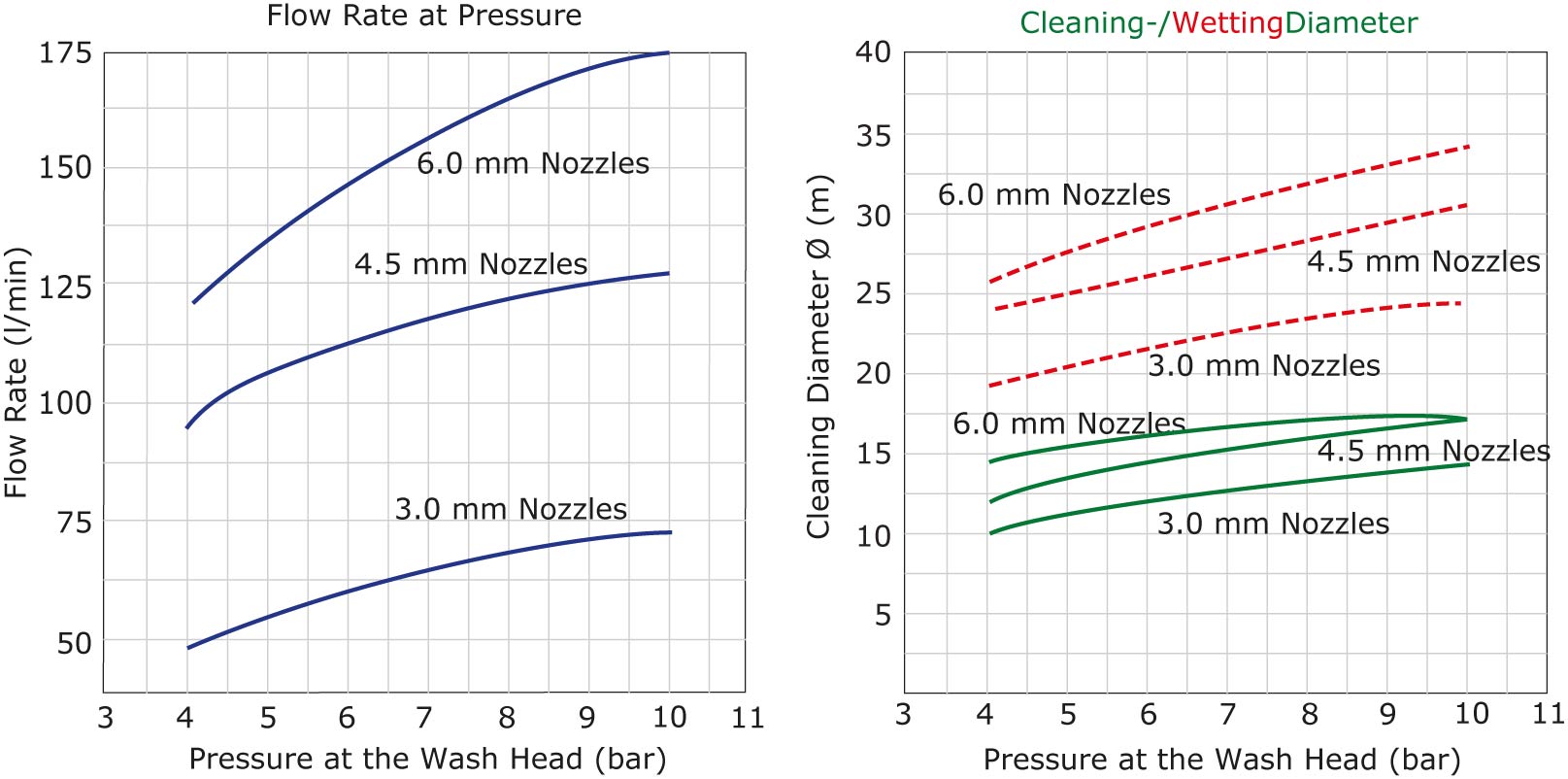

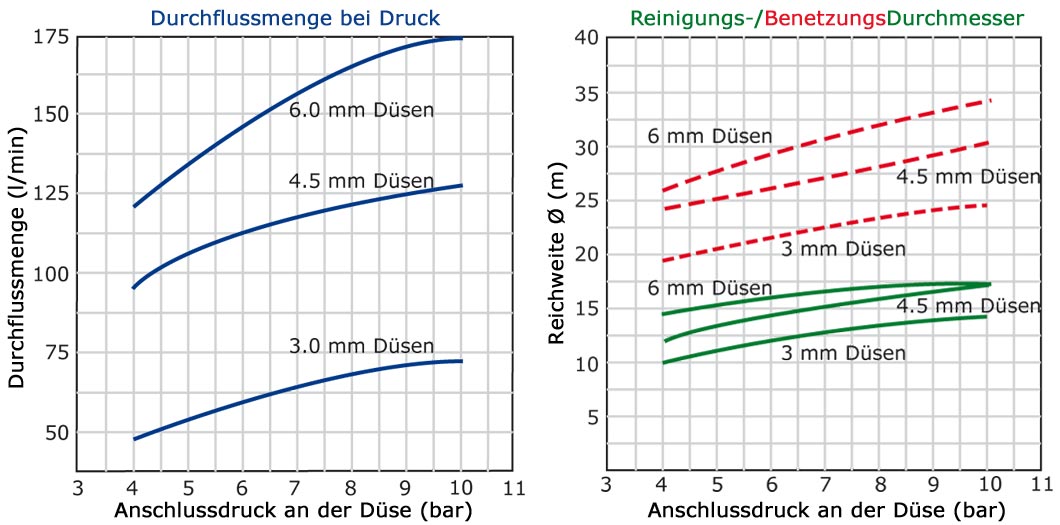

Operating Values
Optimal Operation
The pressure range for operating a Typhoon is 4 – 10 bar at the cleaning machine.
With a flow rate of 48 – 175 liters/minute, a cleaning diameter of 10 – 17 meters is achieved.

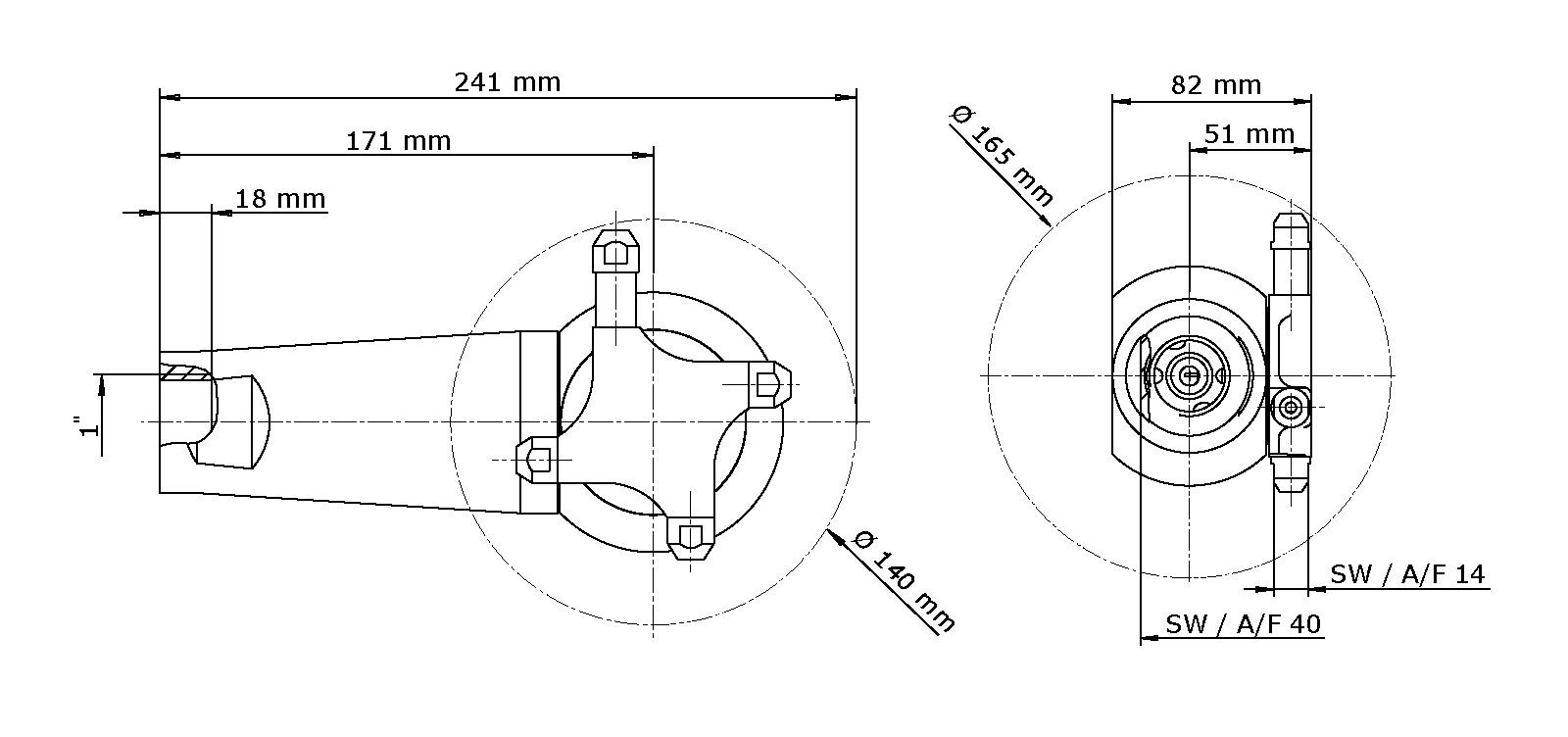

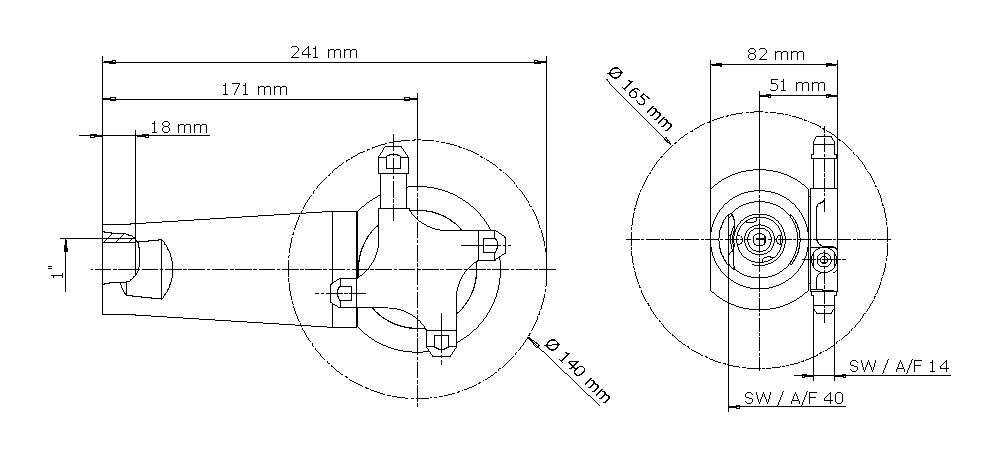

Dimensions
Product description
The Typhoon orbital cleaner is a powerful jet cleaner with a 360° orbital spray pattern. The Typhoon is driven by the cleaning medium at a pressure of 4 to 8 bar. A radial and axial rotation of the nozzle head is generated by turbine drives. This creates liquid jets aligned by four nozzles with a strong impact effect up to a diameter of 17 meters. With liquid jets running around, a complete spray pattern with full coverage is achieved within 3.5 to 6 minutes.
The use of the device is always resource-saving and takes place with the lowest wear and tear and maintenance costs. The Typhoon meets the highest hygiene and safety standards and can be used in EX zones and FDA applications at the same time. During a long service life, this device will always prove to be a reliable partner for your cleaning tasks. Optionally, the cleaning process of a Typhoon can be permanently and non-invasively monitored by SMW 100 or Vericlean. The Typhoon orbotal cleaner is one of the latest and most effective developments in the cleaning technology market.
Thanks to optimal flow control, a smooth-running mechanism without ball bearings and a hygienic sealing concept, the energy used in the device unfolds in a strong cleaning effect. The orbital cleaning behavior enables the best possible use of the cleaning liquid or chemical additives. For use in hygiene-sensitive areas, the device keeps itself permanently clean with a self-cleaning nozzle and empties itself automatically after use in vertical operation.
Typhoon orbital cleaners are available in many connection variants. The Typhoon is very compact and can be installed in any position in vessels or equipment using a 1” threaded connection or a choice of splint pin or clamp connection. It can also be used on a lance or hanging from a hose. Common uses for this product include tanks and vessels in the brewing, beverage, dairy, food, pharmaceutical, chemical and transportation industries.
Threaded attachment
Typhoon standard devices are equipped with a 1″ cylindrical internal thread BSP (British Standard PIPE according to DIN ISO 228). Alternatively the device is available as 1,5″ BSP or reduced to 3/4″ BSP. Additionally the device is available with a 1″, 1,5″ or a reduced 3/3″ conical internal thread NPT (National Pipe Taper, American pipe thread for self-sealing connections).
Splint attachment
The Typhoon is optionally available with a 1″, 1,5″ or DN40 splint pin attachment. The splint pin attachment ensures that the cleaning machine is attached without creating some dead space. Splint pin versions have an approx. 15% higher flow rate.
Clamp attachment
The Typhoon is optionally available with a 1,5″ clamp attachment. A clamp attachment ensures that the cleaning machine can be easily removed.
Typhoon orbital cleaner with 3/4″ Thread attachment
| Attachment | Nozzles | Pipe* | Product code | Materials | Certificates | Article Number |
|---|---|---|---|---|---|---|
| *corresponds to the maximum pipe OD of the pipe on which the machine is to be installed (inches or mm). Splint pin versions have an approx. 15% higher flow rate. Recommended standard devices with a high probability of being in stock are set in blue. | ||||||
| 3/4″ IG-BSP | 4 x 3,0 mm | 3/4″ | Typhoon-AF4x3S-75BSP0 | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 3/4″ IG-BSP | 4 x 3,0 mm | 3/4″ | Typhoon-F4x3S-75BSP | 316L/PTFE | FDA, 3.1 | – |
| 3/4″ IG-NPT | 4 x 3,0 mm | 3/4″ | Typhoon-AF4x3S-75NPT | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 3/4″ IG-NPT | 4 x 3,0 mm | 3/4″ | Typhoon-F4x3S-75NPT | 316L/PTFE | FDA, 3.1 | – |
| 3/4″ IG-BSP | 4 x 4,5 mm | 3/4″ | Typhoon-AF4x4S-75BSP | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 3/4″ IG-BSP | 4 x 4,5 mm | 3/4″ | Typhoon-F4x4S-75BSP | 316L/PTFE | FDA, 3.1 | – |
| 3/4″ IG-NPT | 4 x 4,5 mm | 3/4″ | Typhoon-AF4x4S-75NPT | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 3/4″ IG-NPT | 4 x 4,5 mm | 3/4″ | Typhoon-F4x4S-75NPT | 316L/PTFE | FDA, 3.1 | – |
Typhoon orbital cleaner with 1″ Thread attachment
| Attachment | Nozzles | Pipe* | Product code | Materials | Certificates | Article Number |
|---|---|---|---|---|---|---|
| *corresponds to the maximum pipe OD of the pipe on which the machine is to be installed (inches or mm). Splint pin versions have an approx. 15% higher flow rate. Recommended standard devices with a high probability of being in stock are set in blue. | ||||||
| 1″ IG-BSP | 4 x 3,0 mm | 1″ | Typhoon-AF4x3S-BSP | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4970-418 |
| 1″ IG-BSP | 4 x 3,0 mm | 1″ | Typhoon-F4x3S-BSP | 316L/PTFE | FDA, 3.1 | 4660-4970-419 |
| 1″ IG-NPT | 4 x 3,0 mm | 1″ | Typhoon-AF4x3S-NPT | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1″ IG-NPT | 4 x 3,0 mm | 1″ | Typhoon-F4x3S-NPT | 316L/PTFE | FDA, 3.1 | – |
| 1″ IG-BSP | 4 x 4,5 mm | 1″ | Typhoon-AF4x4S-BSP | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4969-117 |
| 1″ IG-BSP | 4 x 4,5 mm | 1″ | Typhoon-F4x4S-BSP | 316L/PTFE | FDA, 3.1 | 4660-4969-119 |
| 1″ IG-NPT | 4 x 4,5 mm | 1″ | Typhoon-AF4x4S-NPT | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4969-121 |
| 1″ IG-NPT | 4 x 4,5 mm | 1″ | Typhoon-F4x4S-NPT | 316L/PTFE | FDA, 3.1 | 4660-4969-123 |
| 1″ IG-BSP | 4 x 6,0 mm | 1″ | Typhoon-AF4x6S-BSP | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4969-118 |
| 1″ IG-BSP | 4 x 6,0 mm | 1″ | Typhoon-F4x6S-BSP | 316L/PTFE | FDA, 3.1 | 4660-4969-120 |
| 1″ IG-NPT | 4 x 6,0 mm | 1″ | Typhoon-AF4x6S-NPT | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4969-122 |
| 1″ IG-NPT | 4 x 6,0 mm | 1″ | Typhoon-F4x6S-NPT | 316L/PTFE | FDA, 3.1 | 4660-4969-124 |
Typhoon orbital cleaner with 1,5″ Thread attachment
| Attachment | Nozzles | Pipe* | Product code | Materials | Certificates | Article Number |
|---|---|---|---|---|---|---|
| *corresponds to the maximum pipe OD of the pipe on which the machine is to be installed (inches or mm). Splint pin versions have an approx. 15% higher flow rate. Recommended standard devices with a high probability of being in stock are set in blue. | ||||||
| 1,5″ IG-BSP | 4 x 3,0 mm | 1,5″ | Typhoon-AF4x3S-150BSP | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1,5″ IG-BSP | 4 x 3,0 mm | 1,5″ | Typhoon-F4x3S-150BSP | 316L/PTFE | FDA, 3.1 | – |
| 1,5″ IG-NPT | 4 x 3,0 mm | 1,5″ | Typhoon-AF4x3S-150NPT | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1,5″ IG-NPT | 4 x 3,0 mm | 1,5″ | Typhoon-F4x3S-150NPT | 316L/PTFE | FDA, 3.1 | – |
| 1,5″ IG-BSP | 4 x 4,5 mm | 1,5″ | Typhoon-AF4x4S-150BSP | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1,5″ IG-BSP | 4 x 4,5 mm | 1,5″ | Typhoon-F4x4S-150BSP | 316L/PTFE | FDA, 3.1 | – |
| 1,5″ IG-NPT | 4 x 4,5 mm | 1,5″ | Typhoon-AF4x4S-150NPT | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1,5″ IG-NPT | 4 x 4,5 mm | 1,5″ | Typhoon-F4x4S-150NPT | 316L/PTFE | FDA, 3.1 | – |
| 1,5″ IG-BSP | 4 x 6,0 mm | 1,5″ | Typhoon-AF4x6S-150BSP | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1,5″ IG-BSP | 4 x 6,0 mm | 1,5″ | Typhoon-F4x6S-150BSP | 316L/PTFE | FDA, 3.1 | – |
| 1,5″ IG-NPT | 4 x 6,0 mm | 1,5″ | Typhoon-AF4x6S-150NPT | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1,5″ IG-NPT | 4 x 6,0 mm | 1,5″ | Typhoon-F4x6S-150NPT | 316L/PTFE | FDA, 3.1 | – |
Typhoon orbital cleaner with 1″ Splint attachment
| Attachment | Nozzles | Pipe* | Product code | Materials | Certificates | Article Number |
|---|---|---|---|---|---|---|
| *corresponds to the maximum pipe OD of the pipe on which the machine is to be installed (inches or mm). Splint pin versions have an approx. 15% higher flow rate. Recommended standard devices with a high probability of being in stock are set in blue. | ||||||
| 1″ Splint | 4 x 3,0 mm | 25,4 | Typhoon-AF4x3S-100PF | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1″ Splint | 4 x 3,0 mm | 25,4 | Typhoon-F4x3S-100PF | 316L/PTFE | FDA, 3.1 | – |
| 1″ Splint | 4 x 4,5 mm | 25,4 | Typhoon-AF4x4S-100PF | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4970-413 |
| 1″ Splint | 4 x 4,5 mm | 25,4 | Typhoon-F4x4S-100PF | 316L/PTFE | FDA, 3.1 | 4660-4970-415 |
| 1″ Splint | 4 x 6,0 mm | 25,4 | Typhoon-AF4x6S-100PF | 316L/C.PTFE | ATEX+FDA, 3.1 | 4660-4970-414 |
| 1″ Splint | 4 x 6,0 mm | 25,4 | Typhoon-F4x6S-100PF | 316L/PTFE | FDA, 3.1 | 4660-4970-416 |
Typhoon orbital cleaner with 1,5″ Splint attachment
| Attachment | Nozzles | Pipe* | Product code | Materials | Certificates | Article Number |
|---|---|---|---|---|---|---|
| *corresponds to the maximum pipe OD of the pipe on which the machine is to be installed (inches or mm). Splint pin versions have an approx. 15% higher flow rate. Recommended standard devices with a high probability of being in stock are set in blue. | ||||||
| 1,5″ Splint | 4 x 3,0 mm | 38,1 | Typhoon-AF4x3S-150PF | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1,5″ Splint | 4 x 3,0 mm | 38,1 | Typhoon-F4x3S-150PF | 316L/PTFE | FDA, 3.1 | – |
| 1,5″ Splint | 4 x 4,5 mm | 38,1 | Typhoon-AF4x4S-150PF | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1,5″ Splint | 4 x 4,5 mm | 38,1 | Typhoon-F4x4S-150PF | 316L/PTFE | FDA, 3.1 | – |
| 1,5″ Splint | 4 x 6,0 mm | 38,1 | Typhoon-AF4x6S-150PF | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1,5″ Splint | 4 x 6,0 mm | 38,1 | Typhoon-F4x6S-150PF | 316L/PTFE | FDA, 3.1 | – |
Typhoon orbital cleaner with DN40 Splint attachment
| Attachment | Nozzles | Pipe* | Product code | Materials | Certificates | Article Number |
|---|---|---|---|---|---|---|
| *corresponds to the maximum pipe OD of the pipe on which the machine is to be installed (inches or mm). Splint pin versions have an approx. 15% higher flow rate. Recommended standard devices with a high probability of being in stock are set in blue. | ||||||
| DN40 Splint | 4 x 3,0 mm | 41,15 | Typhoon-AF4x3S-DN40 | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| DN40 Splint | 4 x 3,0 mm | 41,15 | Typhoon-F4x3S-DN40 | 316L/PTFE | FDA, 3.1 | – |
| DN40 Splint | 4 x 4,5 mm | 41,15 | Typhoon-AF4x4S-DN40 | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| DN40 Splint | 4 x 4,5 mm | 41,15 | Typhoon-F4x4S-DN40 | 316L/PTFE | FDA, 3.1 | – |
| DN40 Splint | 4 x 6,0 mm | 41,15 | Typhoon-AF4x6S-DN40 | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| DN40 Splint | 4 x 6,0 mm | 41,15 | Typhoon-F4x6S-DN40 | 316L/PTFE | FDA, 3.1 | – |
Typhoon orbital cleaner with 1,5″ Clamp attachment
| Attachment | Nozzles | Pipe* | Product code | Materials | Certificates | Article Number |
|---|---|---|---|---|---|---|
| *corresponds to the maximum pipe OD of the pipe on which the machine is to be installed (inches or mm). Splint pin versions have an approx. 15% higher flow rate. Recommended standard devices with a high probability of being in stock are set in blue. | ||||||
| 1,5″ Clamp | 4 x 3,0 mm | 1,5″ | Typhoon-AF4x3S-150CL | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1,5″ Clamp | 4 x 3,0 mm | 1,5″ | Typhoon-F4x3S-150CL | 316L/PTFE | FDA, 3.1 | – |
| 1,5″ Clamp | 4 x 4,5 mm | 1,5″ | Typhoon-AF4x4S-150CL | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1,5″ Clamp | 4 x 4,5 mm | 1,5″ | Typhoon-F4x4S-150CL | 316L/PTFE | FDA, 3.1 | – |
| 1,5″ Clamp | 4 x 6 mm | 1,5″ | Typhoon-AF4x6S-150CL | 316L/C.PTFE | ATEX+FDA, 3.1 | – |
| 1,5″ Clamp | 4 x 6 mm | 1,5″ | Typhoon-F4x6S-150CL | 316L/PTFE | FDA, 3.1 | – |
Accessories
Safety cage (co-rotating)
| Materials: | Stainless steel 1.4404 (316L), PTFE |
| Certificates: | 3.1, 2.2 |
| Device attachment: | 1″ AG-BSP |
| Supply: | Welding connection for 41 mm pipe or 1.5″ AG-BSP |
Welded adapter
| Materials: | Stainless steel 1.4404 (316L) |
| Certificates: | 3.1, 2.2 |
| Device attachment: | 3/4″ AG-BSP |
| Supply: | Welding end |
Stand
| Materials: | Stainless steel 1.4404 (316L), PTFE |
| Certificates: | 3.1, 2.2 |
| Device attachment: | 3/4″ AG-BSP |
| Supply: | as required |
Tank cleaning wagon
| Materials: | Stainless steel 316L (1.4404), PP (PTFE) |
| Zertifikate: | FDA, 3.1, 2.2 |
| Device attachment: | 3/4″ AG-BSP |
| Supply: | DN50 Thread connection DIN 11851 |
Installation lance
| Materials: | Stainless steel 1.4404 (316L), EPDM, FKM |
| Certificates: | 3.1, 2.2 |
| Device attachment: | 3/4″ AG-BSP (1″ Splint) |
| Tank connection: | Flange as required |
| Sensor: | with/without SMW 100 |
Vericlean rotation monitor
| Materials: | Stainless steel 316L (1.4404), PTFE |
| Certificates: | 3.1, 2.2 |
| Device attachment: | 3/4″ AG-BSP |
| Tank connection: | Flange as required |
| Sensor type: | IFM MFT200 |
| Monitoring: | The rotation speed of the cleaning machine is permanently displayed. |
SMW 100 Fluid sensor
| Materials: | 1.4305, PEEK |
| Connecton type: | Welded socket |
| Function: | Sensor surge is displayed every 20 seconds. |
Maintenance packages & Toolkit
| Typhoon C.PTFE (ATEX & FDA) | 4660-4050-888 |
| Typhoon PTFE (FDA) | 4660-4051-888 |
| Toolkit: | 4660-4031-888 |
The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 13.10.2022-71427321893-1888948-71042)
