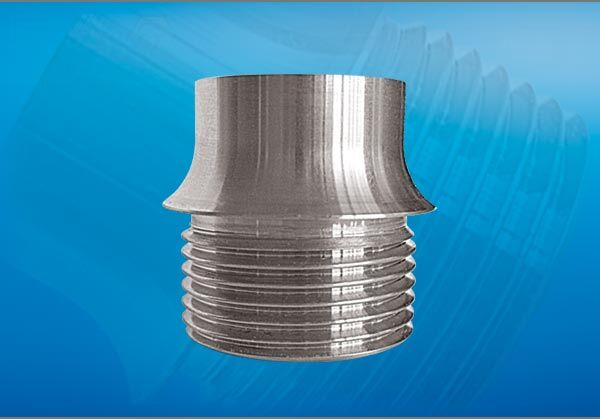

Welding adapter

GEA Breconcherry Anschweißadapter

  • Materials: Stainless steel 316L (1.4404)
  • Certificates: 3.1
  • Suitable for static or rotating cleaners
  • metal sealing
  • Also available with PTFE seal on request
 Designation / Benennung Material / Article Nr. ø D1 ø D2 ø D3 G L1 L2
Welding adapter DN 10-G3/8“ 705-138 18 13 10 G 3/8“ 20 10
Welding adapter DN 15-G1/2“ 705-139 23 19 16 G 1/2“ 25 12
Welding adapter DN 20-G3/4“ 705-137 30 23 20 G 3/4“ 30 15
Welding adapter DN 25-G3/4“ 705-158 32 29 26 G 3/4“ 30 12
Welding adapter DN 25-G1“ 705-136 38 29 26 G 1“ 35 18
Welding adapter DN 40-G11/4“ 705-145 47 41 38 G 11/4“ 40 15
Welding adapter DN 40-G11/2“ 705-135 52 41 38 G 11/2“ 45 20
Welding adapter 3/8“OD-G3/8“ 705-151 18 9,5 7,8 G 3/8“ 20 10
Welding adapter 3/4“OD-G1/2“ 705-148 23 19 15,8 G 1/2“ 25 12
Welding adapter 1“OD-G3/4“ 705-149 30 25,4 22,1 G 3/4“ 27 12
Welding adapter 1“OD-G1“ 705-146 38 25,4 22,1 G 1“ 35 18
Welding adapter 11/2“OD-G11/4“ 705-147 47 38,1 34,8 G 11/4“ 40 15
Welding adapter 2“OD-G11/2“ 705-150 52 50,8 47,5 G 11/2“ 45 20
